SKU
EXL-TR15.4D
Nominal Diameter
15″ / 381mm
Nominal Impedance
4+4 ohms
RMS Power Handling
2500W
MAX Power Handling
5000W
Sensitivity (1w/1m)
84dB
Frequency Response
10-400 Hz
Recommended Lo Pass Crossover
120 Hz
Demodulating Rings
No
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear

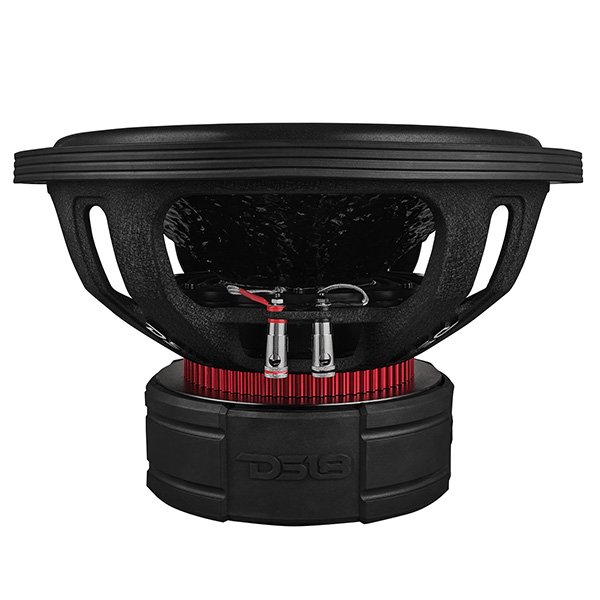

Speaker Terminals
Push 6ga
Voice Coil Diameter
4″ / 99.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper + Epoxy Coating
Dust Cap Material
PPI
Surround Material
Foam
Spider Diameter
8.5″ / 215mm
Leads Connection Type
Crossed Spider
Basket Material
Aluminum
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
3 x 98.3 Oz (295 Oz)
Displacement Volume
3.1L / 0.109ft3
Equivalent Volume Vas
36.8L / 1.29ft3
Excursion (one way) Xmax
20 mm
Free Air Resonance Fs
42 Hz
Mechanical Factor Qms
5.427
Electrical Factor Qes
0.8
Total Factor Qts
0.697
Moving Mass Mms
396.785 g
Compliance Cms
0.0363u m/N
Bl Factor BI
30.676
Voice Coil Inductance Le
8.04 mH
Diaphragm Area Sd
844.960 cm2
Dc Resistance Re
3.6+3.6 ohms
Efficiency Bandwidth Product EBP
52.5
Sealed Internal Volume
35.4L / 1.25ft3
Sealed Box Output Response F3
45Hz
Ported Internal Volume
70.8L / 2.5ft3
Port Size *Square (WxHxLong)
2.47″x15″x37″ / 62.7x381x939.8mm
Port Tunning Frequency Fb
30Hz
Ported Box Output Response F3
26.5Hz

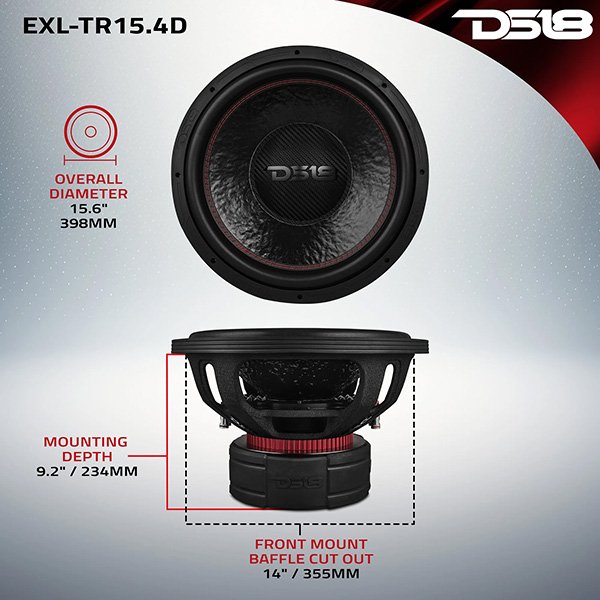

Overall Diameter
15.6″ / 398mm
Overall Depth
10.6″ / 269mm
Front Mount Baffle Cutout
14″ / 355mm
Mounting Depth
9.2″ / 234mm
Motor Diameter
9″ / 230mm
DS18 EXL-TR15.4D
Add a new layer of depth to your system’s audio with DS18’s EXL-TR15.4D!

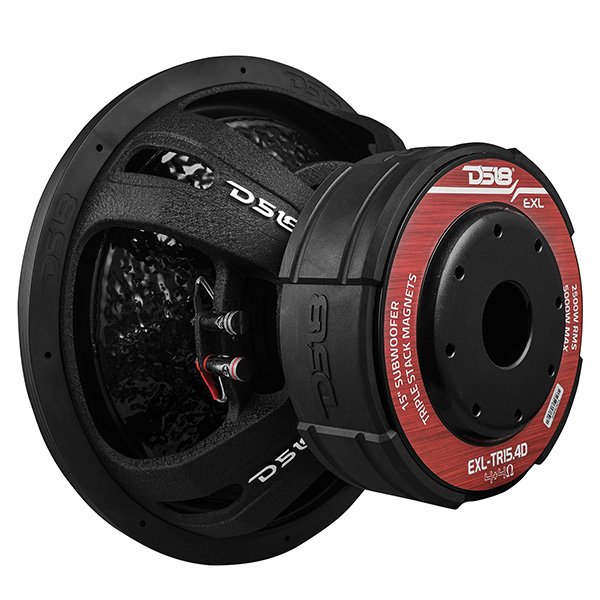

The EXL-TR15.4D is built to dominate, with a jaw-dropping 5000W MAX power handling and 2500W RMS. It’s designed for those who want relentless performance, delivering ground-shaking low-end that’s perfect for any serious ride. The EXL-TR15.4D’s triple-stacked magnets crank up the magnetic flux: this means brutal bass and unmatched loudness, even at insane power levels.
It’s reinforced curvilinear cone is built tough, combining non-pressed paper and epoxy for rock-solid durability. Its sleek shape cuts through distortion, ensuring crystal-clear sound and lasting performance even under intense power. With a 4-inch dual voice coil made of black aluminum and CCAW winding, the EXL-TR15.4D masters heat dissipation, ensuring it stays cool under pressure. This cutting-edge design keeps the subwoofer firing on all cylinders, handling high power and intense audio conditions without breaking a sweat.
The EXL-TR15.4D rocks both sealed and ported enclosures with ease. Whether you’re after pinpoint accuracy or thunderous resonance, this subwoofer adapts to your needs, delivering peak performance no matter how you set it up. With a sweeping frequency range of 10 to 400 Hz, this subwoofer covers the deepest rumbles and punchy basslines. This full-spectrum bass response ensures crystal-clear, powerful sound that takes your vehicle’s audio to the next level.
Whether you’re a car audio competitor, custom car builder, or simply a bass enthusiast, the EXL-TR15.4D delivers the power and precision you need for perfect audio reproduction.
$382.46
